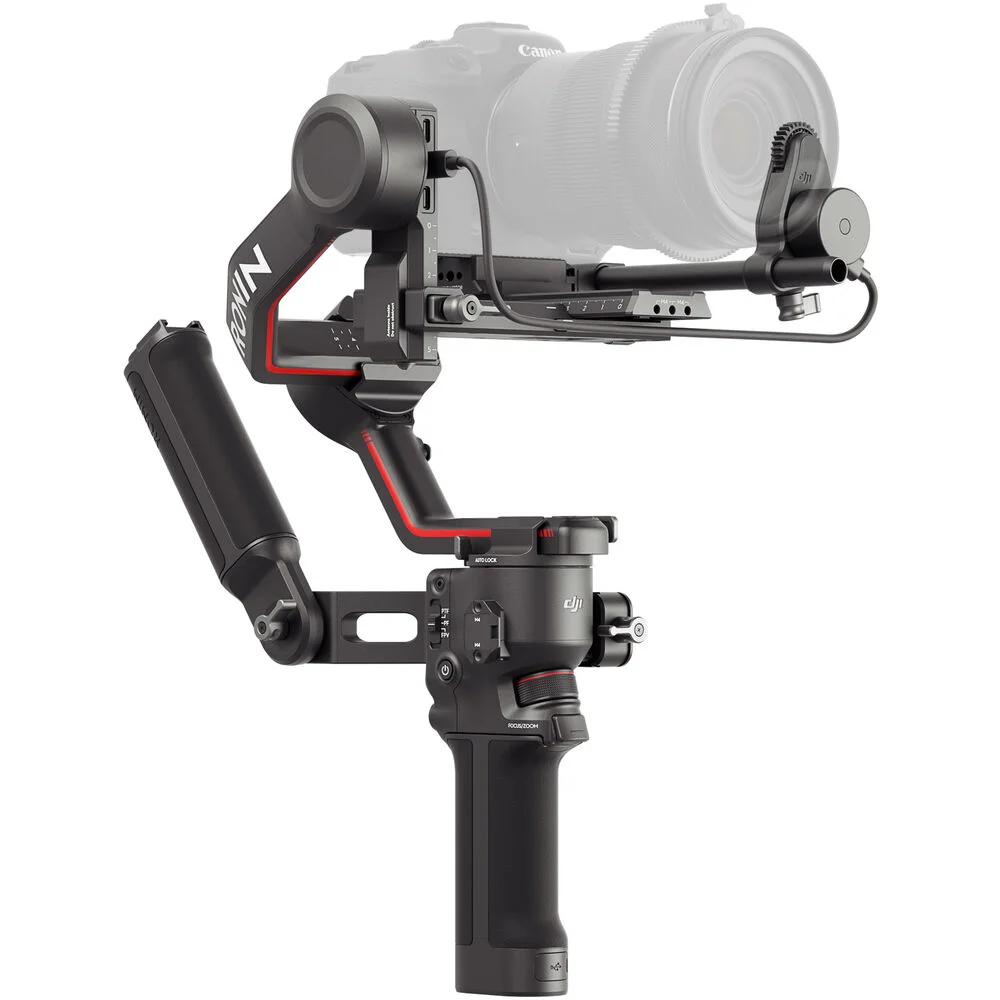

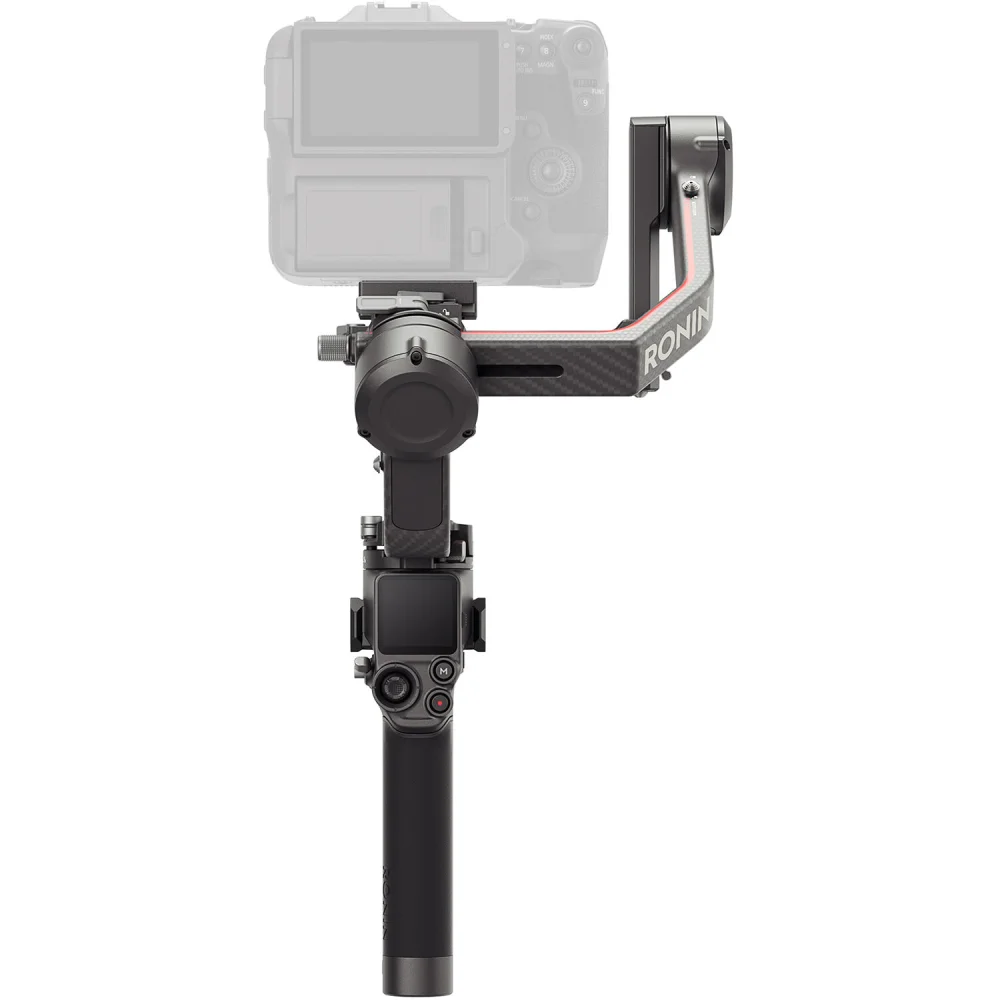

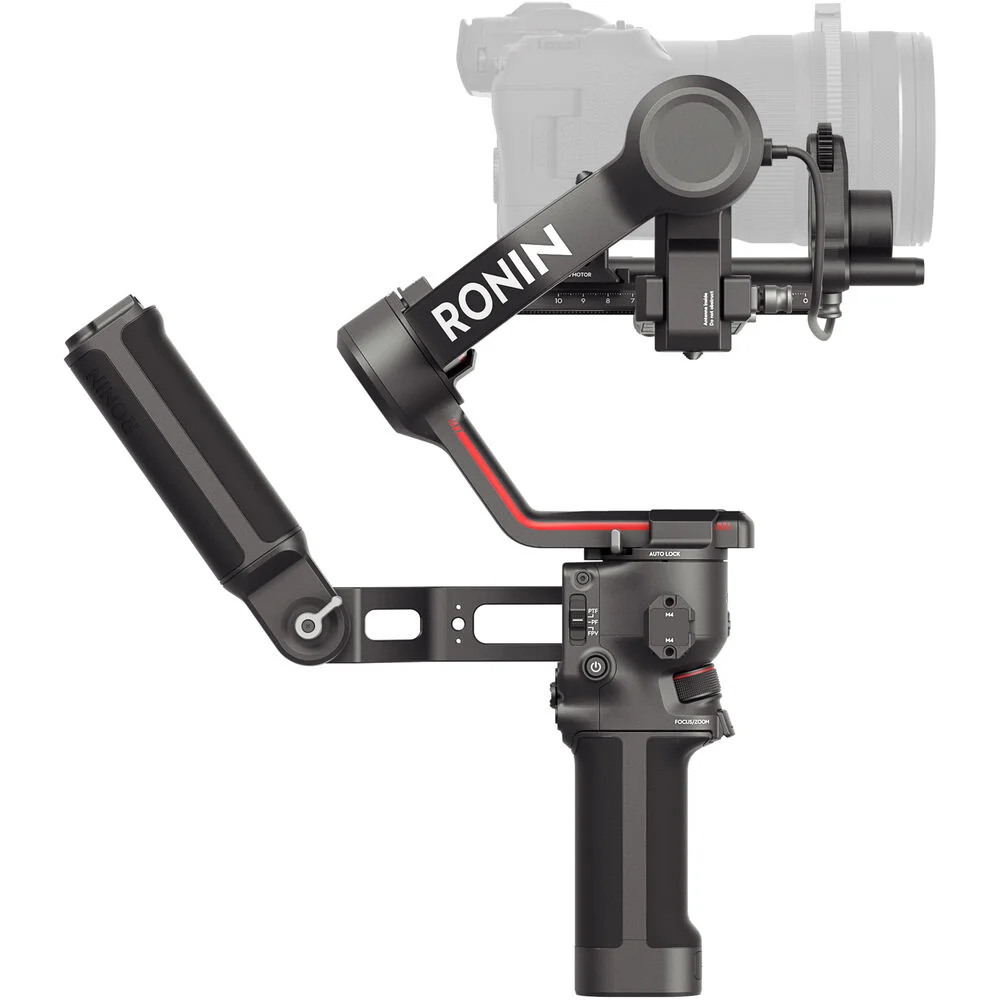

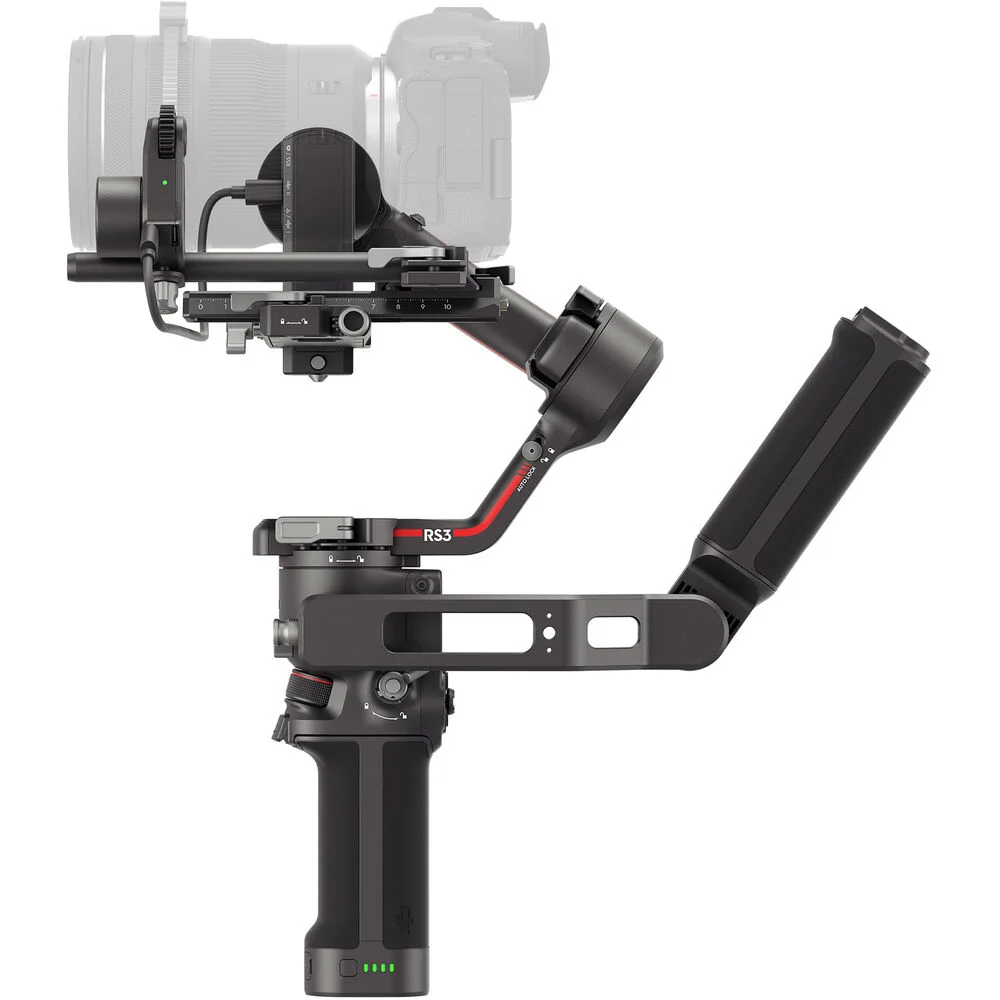

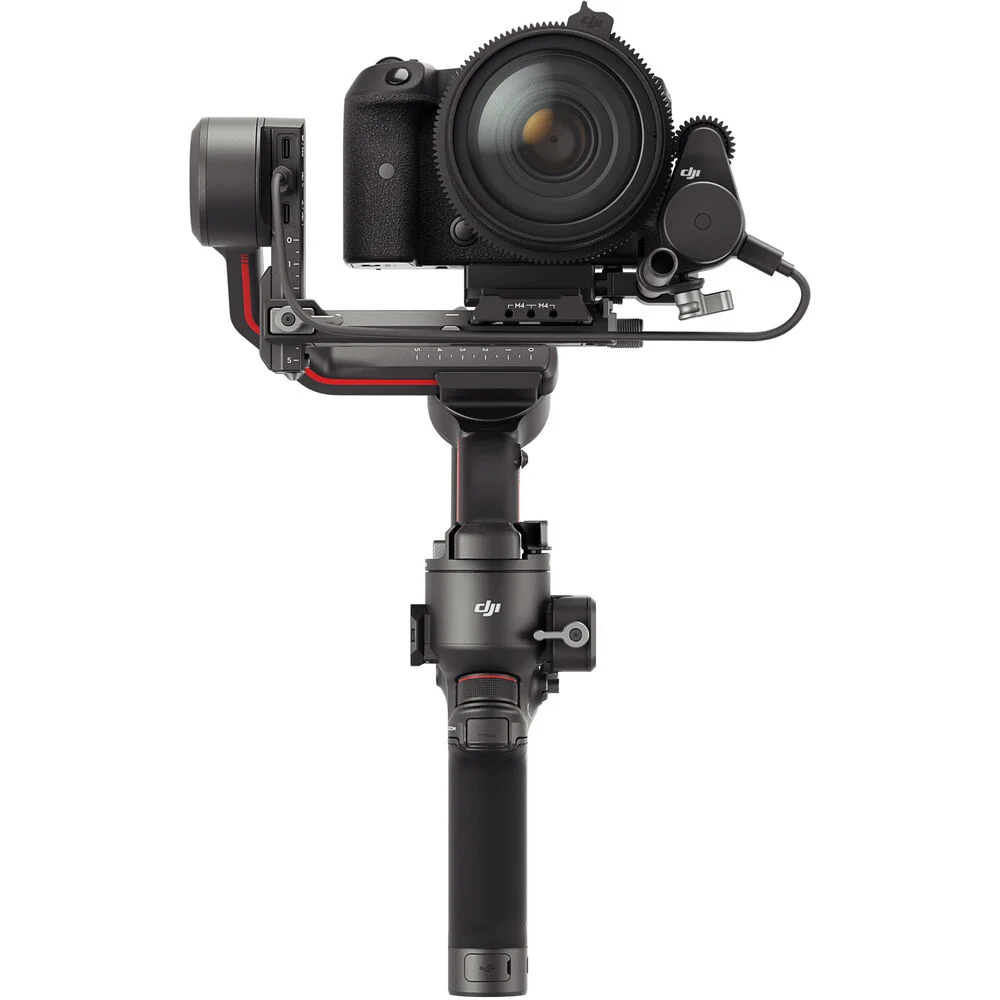

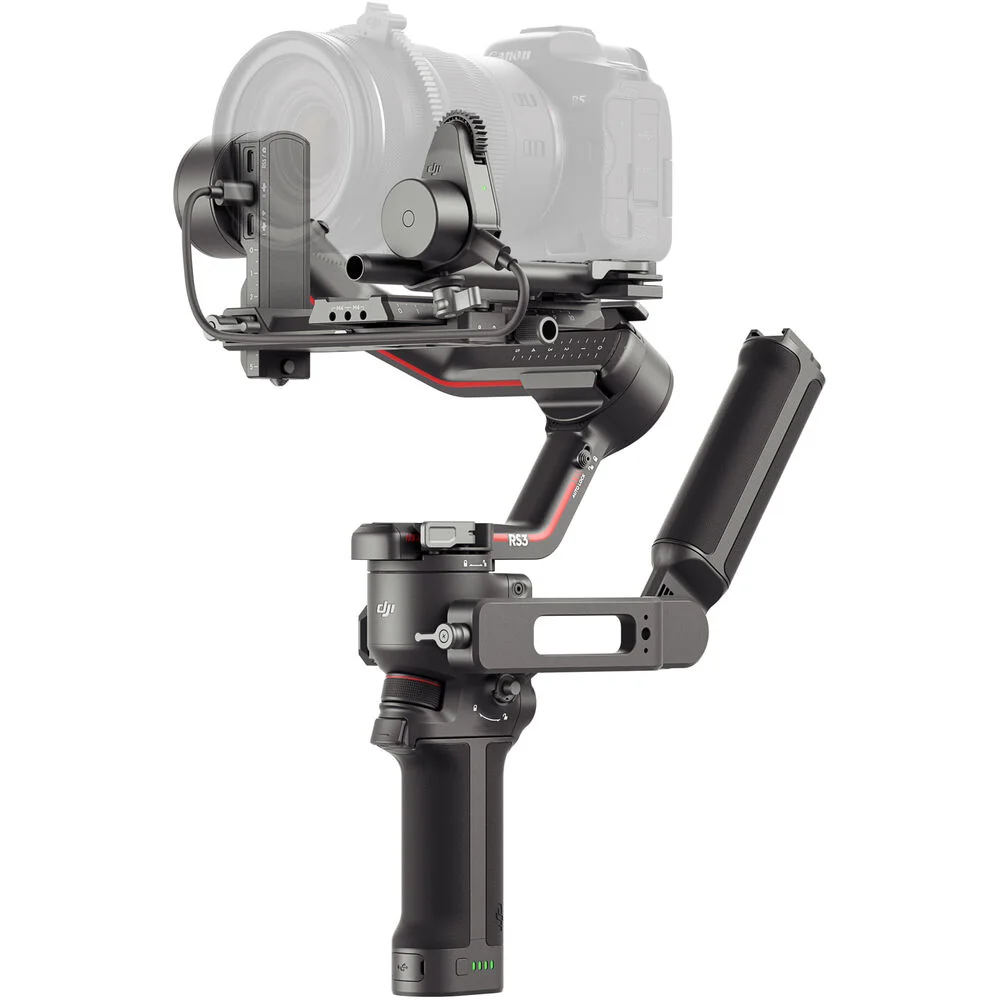

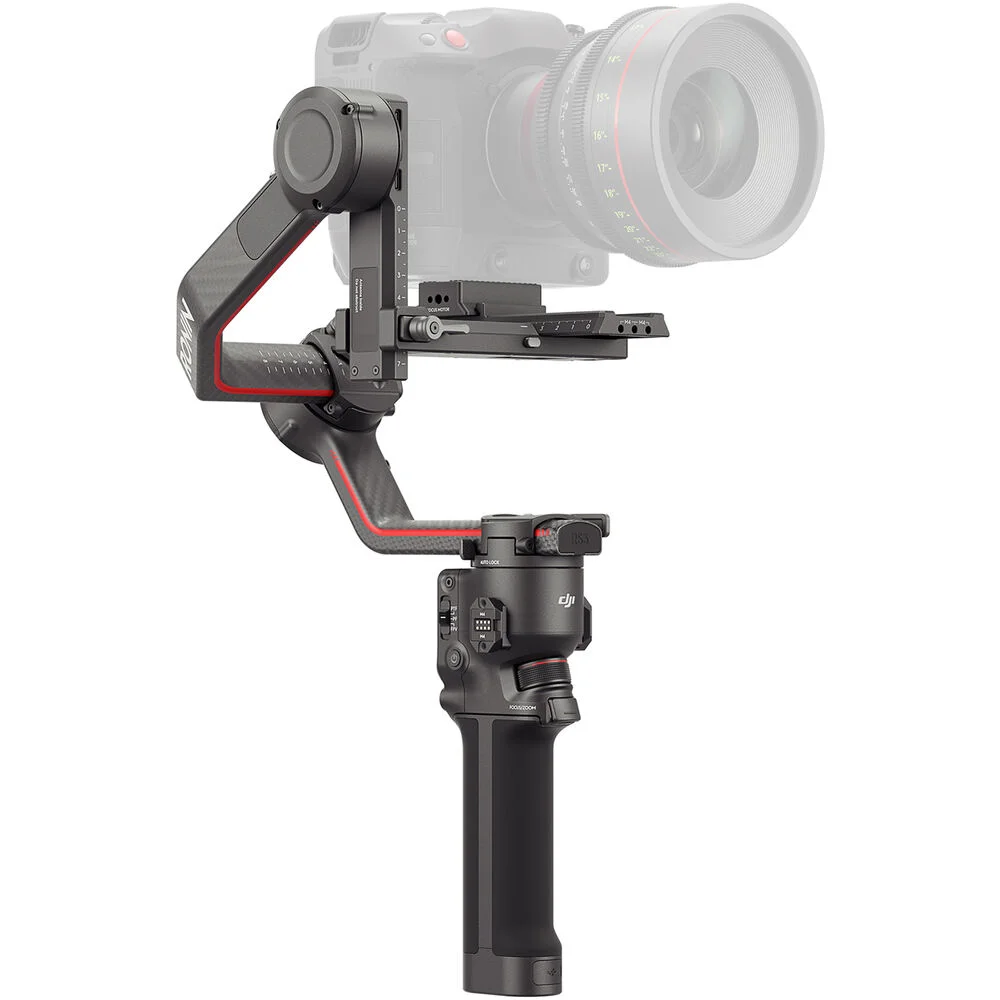

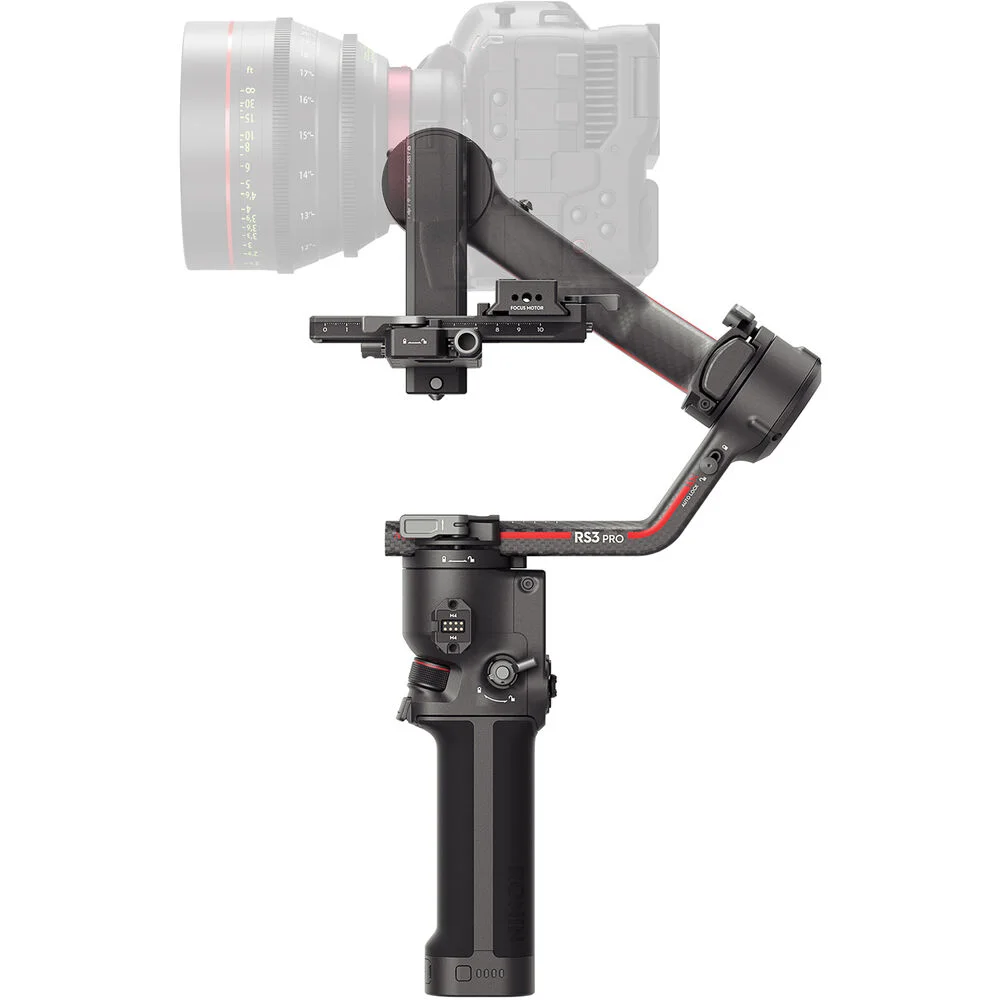

DJI RS 3 Combo 3-Axis Gimbal Stabilizer for DSLR and Mirrorless Camera – Black
Brand:Dji
EAN: 6941565930767About this item
- Lightweight Design with 6.6 lb Payload
- Combo Includes Focus Motor, Case, Cables

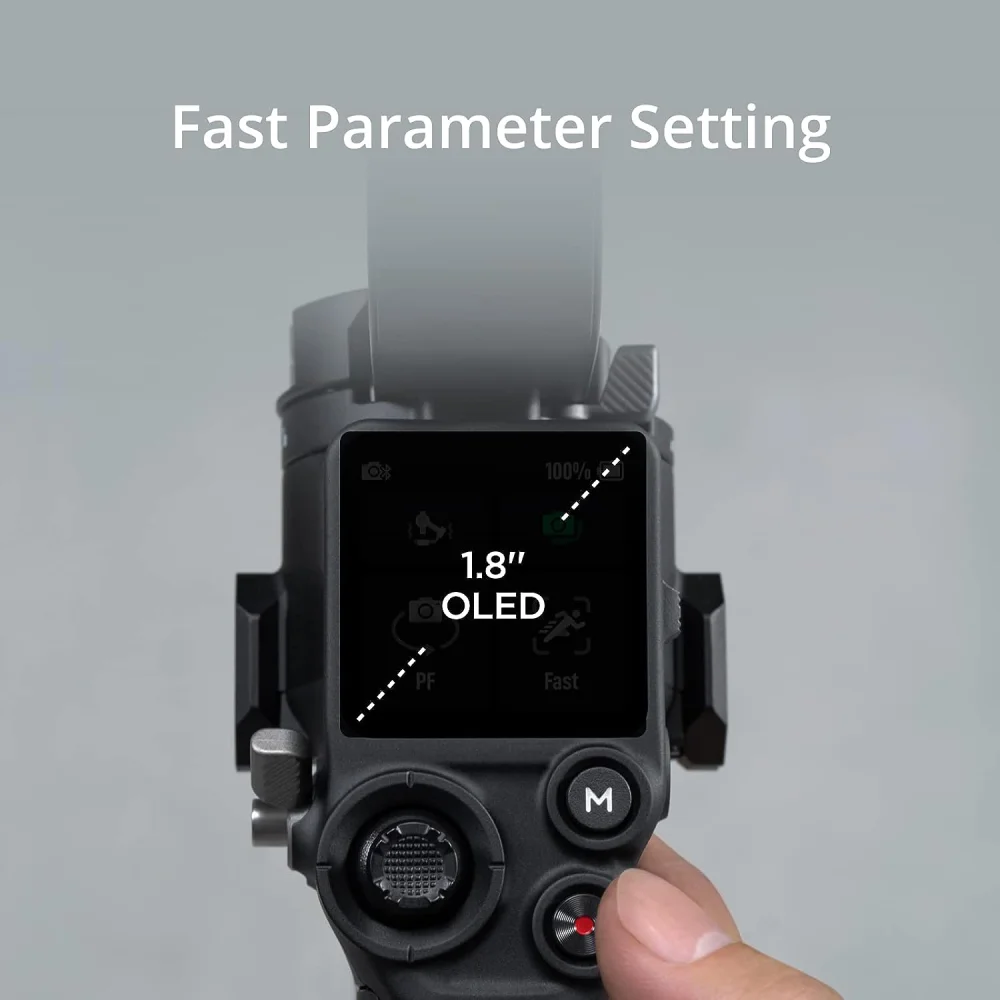

- Advanced 1.8″ OLED Touchscreen
- Instant Mode Switching
- Supports Wireless Image Transmitter
- Motion Control with Smartphone
- 12-Hour Operation Time, PD Fast Charging
- Fine-Tuning Knob on Tilt Axis
- Creative Functions Such as Time Tunnel
Availability:
Out of stock
KWD160 KWD336
Out of stock
DJI RS 3 Combo 3-Axis Gimbal Stabilizer for DSLR and Mirrorless Camera – Black
From the manufacturer
DJI RS 3 Combo 3-Axis Gimbal Stabilizer for DSLR and Mirrorless Camera – Black
Technical Details
Peripheral
-
Accessory Port
-
NATO Ports
1/4″-20 Mounting Hole
Cold Shoe
Video Transmission/Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
-
Battery
-
Model: BHX711-3000-7.2V
Type: 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max. Runtime: 12 hours [1]
Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
-
Connections
-
Bluetooth 5.0
Charging Port (USB-C)
-
Ronin App Requirements
-
iOS 11.0 or above
Android 7.0 or above
-
Languages Supported by the Touchscreen
-
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
-
Tested Payload
-
3 kg (6.6 lbs)
-
Maximum Controlled Rotation Speed
-
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
-
Mechanical Range
-
Pan axis: 360° continuous rotation
Roll axis: -95° to +240°
Tilt axis: -112° to +214°
Mechanical & Electrical Properties
-
Operating Frequency
-
2.400-2.4835 GHz
-
Bluetooth Transmitter Power
-
<8 dBm
-
Operating Temperature
-
-20° to 45° C (-4° to 113° F)
-
Weight
-
Gimbal: Approx. 990 g (2.18 lbs)
Grip: Approx. 200 g (0.44 lbs)
Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs)
Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)
-
Dimensions
-
Folded: 254×230×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 364×187×170 mm (L×W×H, height includes the grip and excludes the Extended Grip/Tripod)
DJI Ronin Image Transmitter
-
Connections
-
Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)
-
Expansion Port
-
Cold Shoe
-
Operating Frequency
-
2.400-2.484 GHz
5.725-5.850 GHz
-
Weight
-
126 g (0.27 lbs)
-
Dimensions
-
82×63×24 mm (L×W×H)
-
Transmitter Power (EIRP)
-
2.400-2.4835 GHz:
<25 dBm (FCC)
<20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:
<25 dBm (FCC/SRRC)
<14 dBm (CE)
-
Battery
-
Capacity: 2970 mAh
- Compatible Charger: 5V/2A
- Charging Time: Approx. 2.5 hours
- Max Battery Life: Approx. 3.5 hours
-
Transmission Range
-
200 m (SRRC/FCC) [2]
100 m (CE) [2]
-
Latency
-
60 ms
-
Operating Current/Voltage
-
900 mA, 3.7V
-
Operating Temperature
-
0° to 45° C (32° to 113° F)

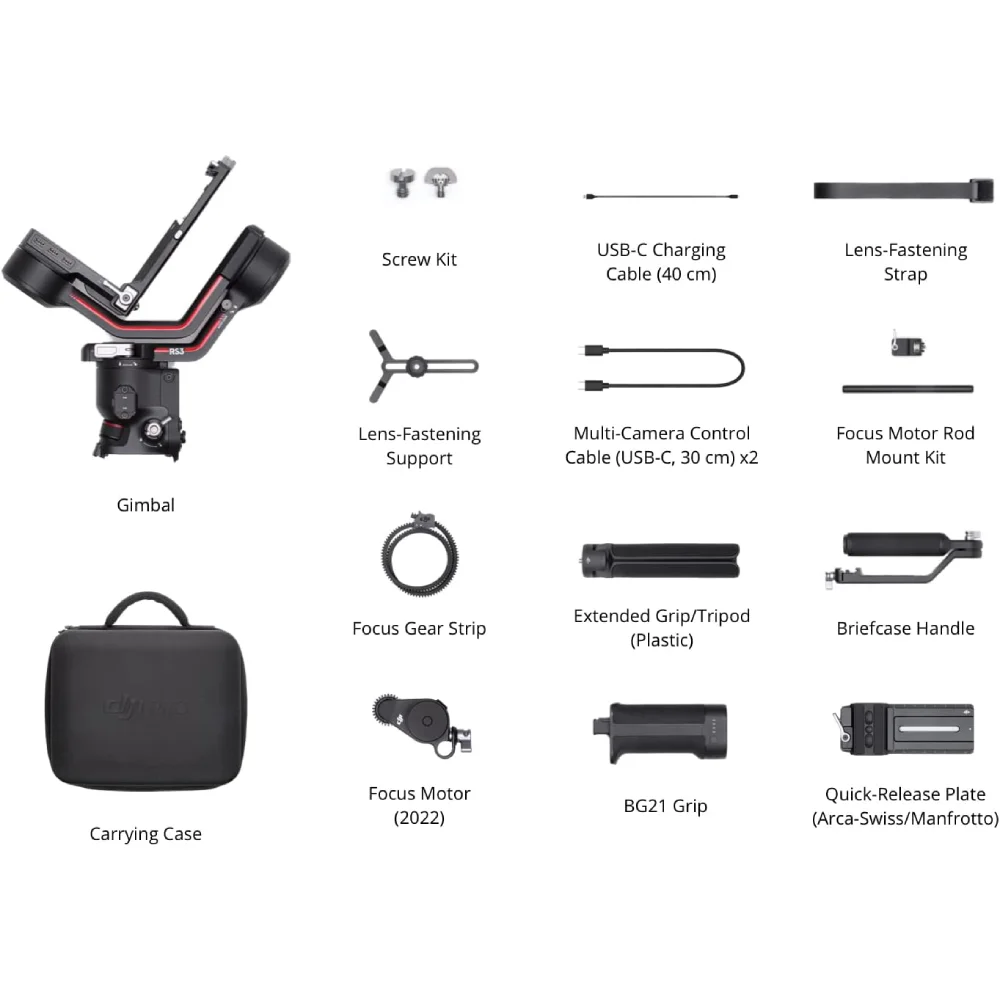

Whats in the Box
- DJI RS 3 Gimbal Stabilizer Combo
- Gimbal
- BG21 Grip
- Lens-Fastening Support

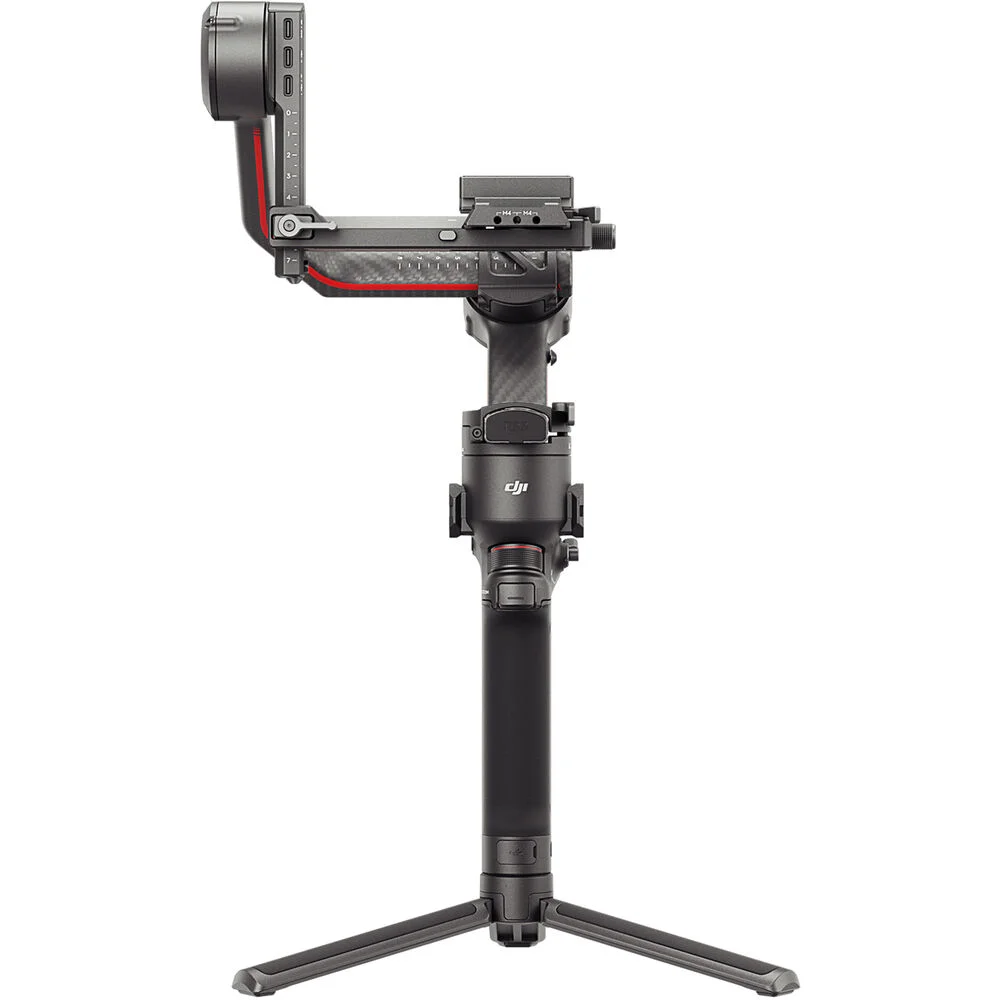

- Extended Grip/Tripod (Plastic)
- Quick-Release Plate (Arca-Swiss/Manfrotto)
- 2 x Multi-Camera Control Cable (USB-C, 30 cm)
- USB-C Charging Cable (40 cm)
- Carrying Case
- Briefcase Handle
- Focus Motor (2022)
- Focus Motor Rod Mount Kit
- Focus Gear Strip
- Lens-Fastening Strap
- Screw Kit
| Weight | 3489 g |
|---|
